Keysight N4431B RF Electronic Calibration Module (ECal), 9 kHz to 13.5 GHz


In stock

SKU: LN794 Category:

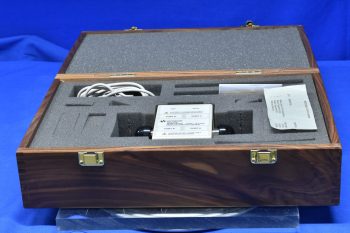

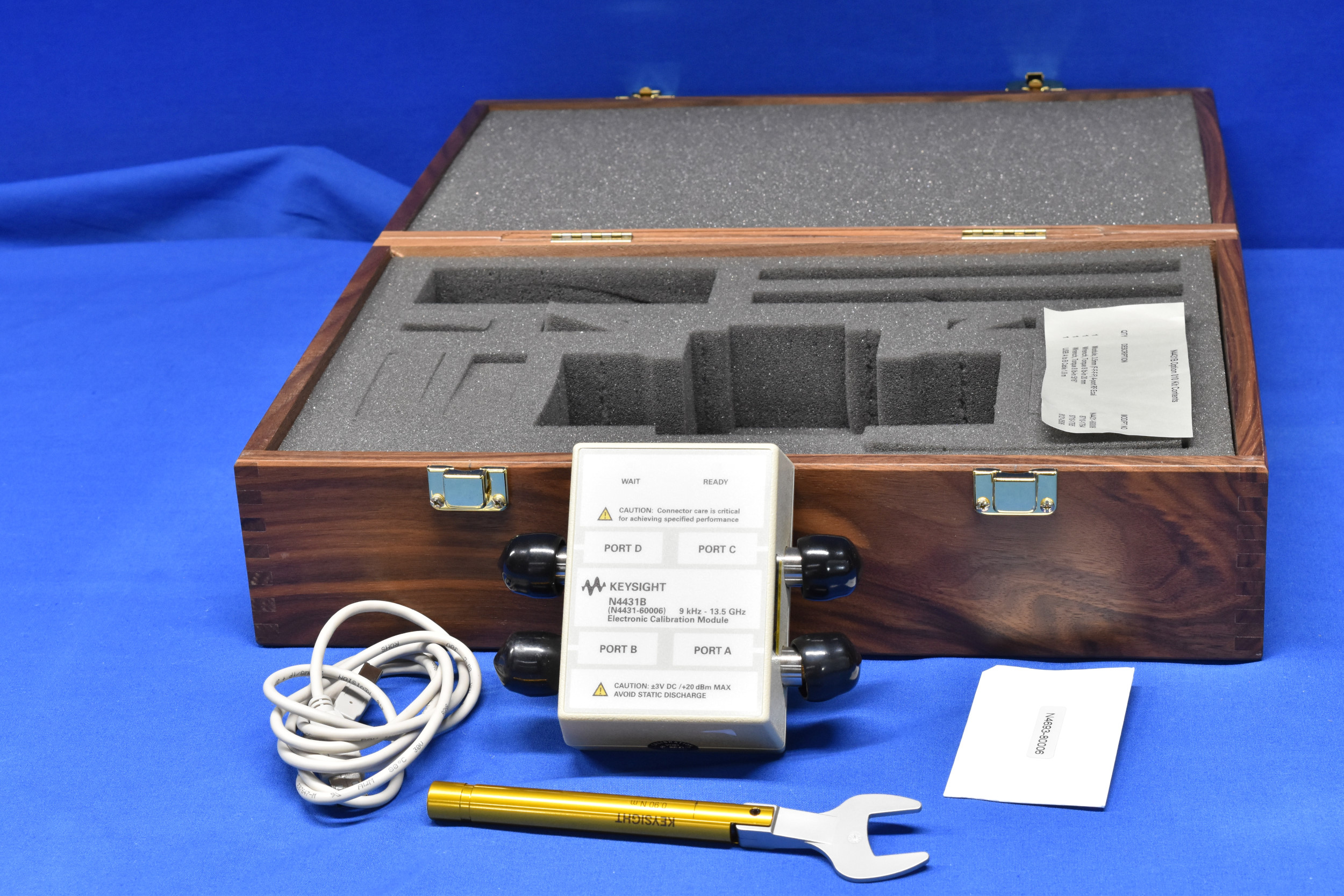

Comes with: Calibration Module N4431B-60006 Wrench, Torque 0.9 N.m 8710-1764 USB A to B Cable 1.8m 8121-0506 Does not include: Wrench, Torque 8 lb-in 5/16″ 8710-1765
This instrument can be delivered with a fresh Guaranteed Pass calibration at additional cost. Please inquire if interested.

We offer a 5-day right of refusal as well as 90-day warranty against defects. Complete terms can be found here.

OEM Description

The Keysight N4431B RF electronic calibration (ECal) module makes calibration of vector network analyzers fast, easy, and accurate. ECal is a precision, single-connection calibration technique for your vector network analyzer. Performing a full three- or four-port calibration takes less than half the time and number of connections using ECal versus mechanical cal kits. Furthermore, the accuracy of the calibration is comparable between electronic and mechanical methods. Traditional mechanical calibrations require intensive operator interaction, which is prone to errors. With ECal, the operator simply connects the ECal module to the network analyzer and the software controls the rest. ECal modules are transfer standards capable of transferring the factory calibration accuracy to your network analyzer. The Keysight PNA and ENA series of network analyzers controls the N4431B module directly through a USB interface. PNA Series network analyzers require firmware revision 2.5. Note: For ENA products that support 9 kHz to 300 kHz capability with the N4431B, please refer to the ENA Help File (User Manual).
Please note:  Any test equipment depicted other than that listed below is for demonstration purposes and is not included in the sale.

What’s In The Box

  • Keysight N4431B RF Electronic Calibration Module as
